Calcein Deep Red™, sonda fluorescente


Calcein Deep Red.  Calcein AM es una de las sondas fluorescentes más populares que se utilizan para marcar y monitorear las funciones celulares de células vivas.


Calcein Deep Red™

Calcein AM es una de las sondas fluorescentes más populares que se utilizan para marcar y controlar las funciones celulares de células vivas.

Sin embargo, el color único de Calcein AM hace imposible utilizar este valioso reactivo en aplicaciones multicolores. Por ejemplo, es imposible utilizar Calcein AM en células transfactadas con GFP debido al mismo color que GFP. Para abordar esta limitación de color de Calcein AM, hemos desarrollado Calcein Orange™, Calcein Red™ y Calcein Deep Red™.

Estos nuevos análogos de Calcein AM permiten el etiquetado multicolor y el análisis funcional de células vivas en combinación con Calcein AM. Calcein Deep Red™ es el producto hidrolizado con esterasa del acetato de Calcein Deep Red™ en las células.

El tinte Calcein Deep Red™ se puede controlar con el juego de filtros Cy5 común. Se utiliza como estándar de referencia de fluorescencia para el acetato de Calcein Deep Red™.

Nombre en Ingles: Calcein Deep Red™

AAT-21902Calcein Deep Red™ 1 mg

Importante, Solo para uso en investigación (RUO). Almacenamiento a largo plazo: Congelar a  < -15 °C. Minimizar la exposición a la luz.


Citómetro de flujo

Excitaciónlaser 640 nm
Emisiónfiltro 660/20 nm
Especificaciones Instrumentocanal APC

Microscopio de Fluorescencia

ExcitaciónJuego de filtros Cy5
EmisiónJuego de filtros Cy5
Placa recomendadaPared negra/fondo claro

Lector de fluorescencia de microplacas

Placa recomendadaNegra, solida


Abrir en Advanced Spectrum Viewer

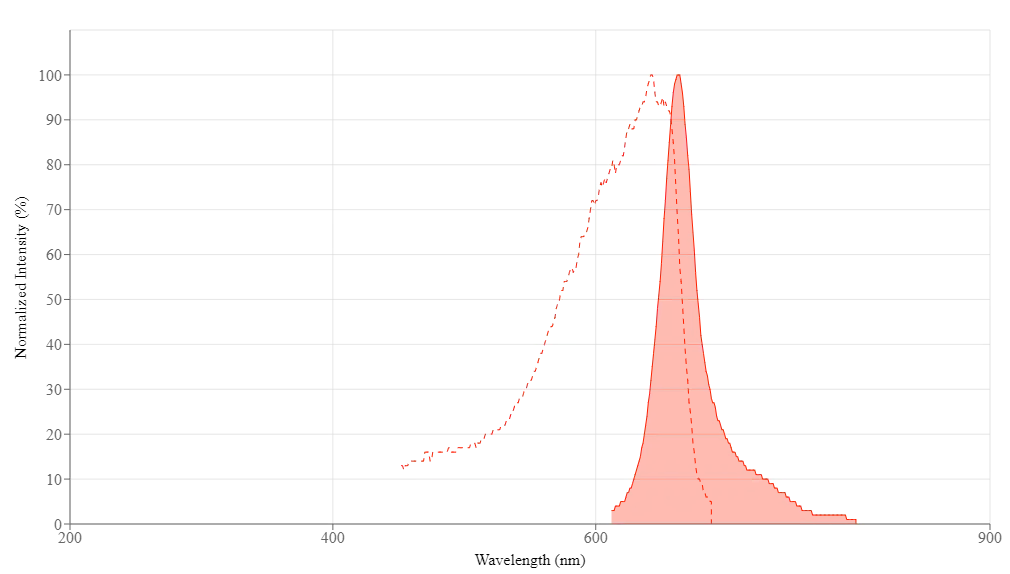

Propiedades Espectrales

Excitación (nm)643
Emisión (nm)663

Propiedades Fisicas

Peso Molecular373.66


Preparación de solución madre común
Tabla 1. Volumen de agua necesario para reconstituir la masa específica de sal sódica de Calcein Deep Red™ a una concentración determinada. Tenga en cuenta que el volumen es sólo para preparar la solución madre. Consulte el protocolo experimental de muestra para conocer los tampones experimentales/fisiológicos adecuados.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM267.623 µL1.338 mL2.676 mL13.381 mL26.762 mL
5 mM53.525 µL267.623 µL535.246 µL2.676 mL5.352 mL
10 mM26.762 µL133.811 µL267.623 µL1.338 mL2.676 mL


Figura 1: Imágenes de células HeLa vivas teñidas con Calcein Deep Red™ (Cat.#21902) y Calcein Deep Red™ AM (Cat.22011). Calcein Deep Red™ no puede penetrar las células vivas intactas.
